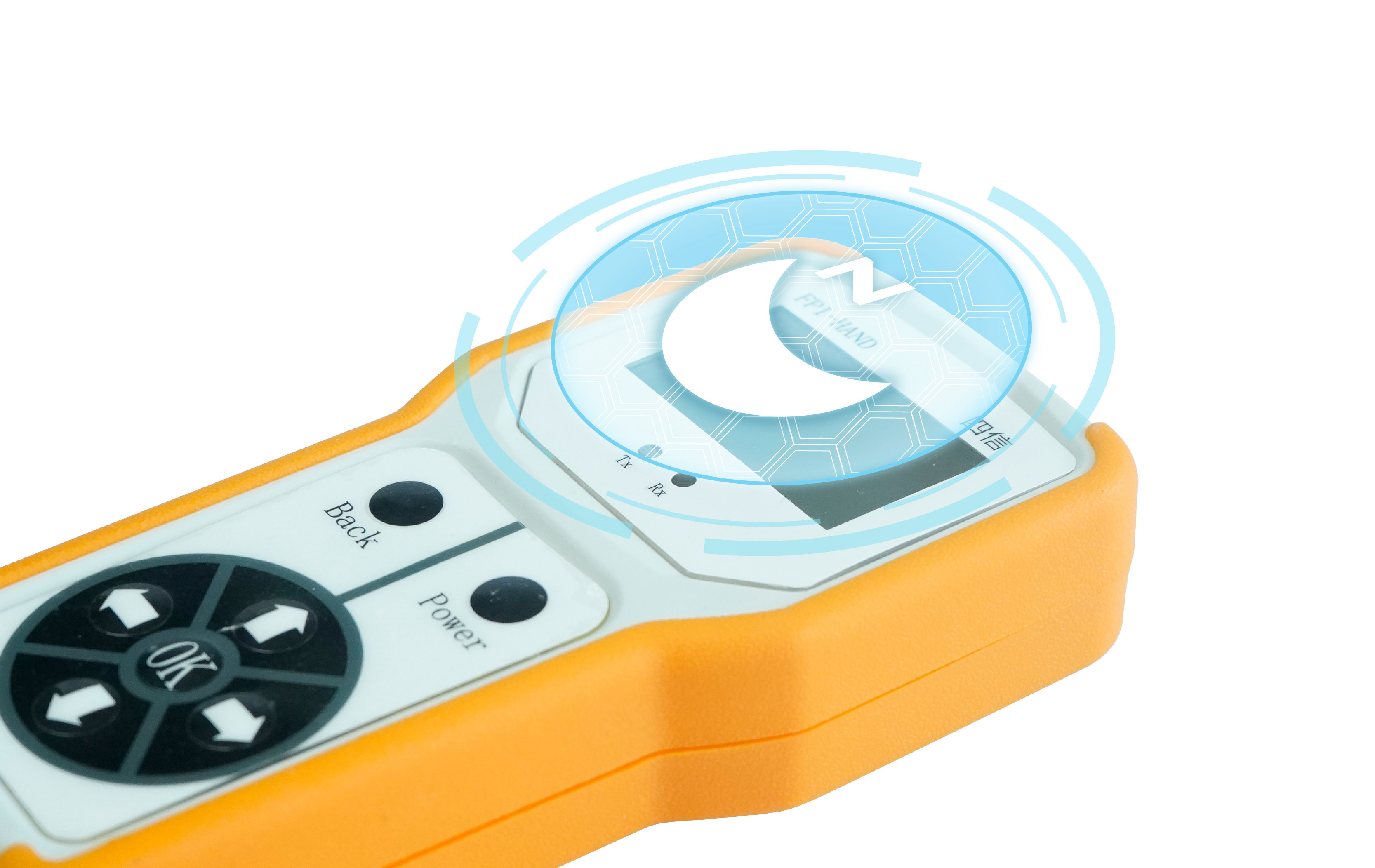

Hand-held Tool FPI-Hand

Overview

Hand-held Tool FPI-Handheld is portable operating equipment which is for remote management of the front-end products. Hand-held Tool suitable for all the overhead line fault indicators in our company. Hand-held Tool can not only read the operating status, battery voltage, load current, electric field and other information of the fault indicator, but also manage the fault indicator. Such as reading and setting operating parameters, upgrade online, remote control, fault simulation and fault reset.

Feature and Benefit

Smart sleep function

Lower consumption sleeping mode and automatic shutdown function, increase the battery life, reduce the number of battery replacement
LED Status Display

Data transfer and receive indicator light which displays status information
LCD is suitable for night operation

Equipped with an LCD screen with backlight function, it can be operated normally even at night
Up to 70m communication

Support JYZ home series indicators, communication distance up to 70m

Technical Parameter

Parameter	value
Housing	Plastic, IP54
Weight	Less than 250g
Communicate with the indicator	433MHz
FLASH	512MB
Altitude	≤2000m
Relative humidity	5~95% (Unfreezing)
Temperature	Working temperature:-20℃~70℃ Storage temperature:-40℃~70℃
