Communication Unit JYZ-FF-HD

Overview

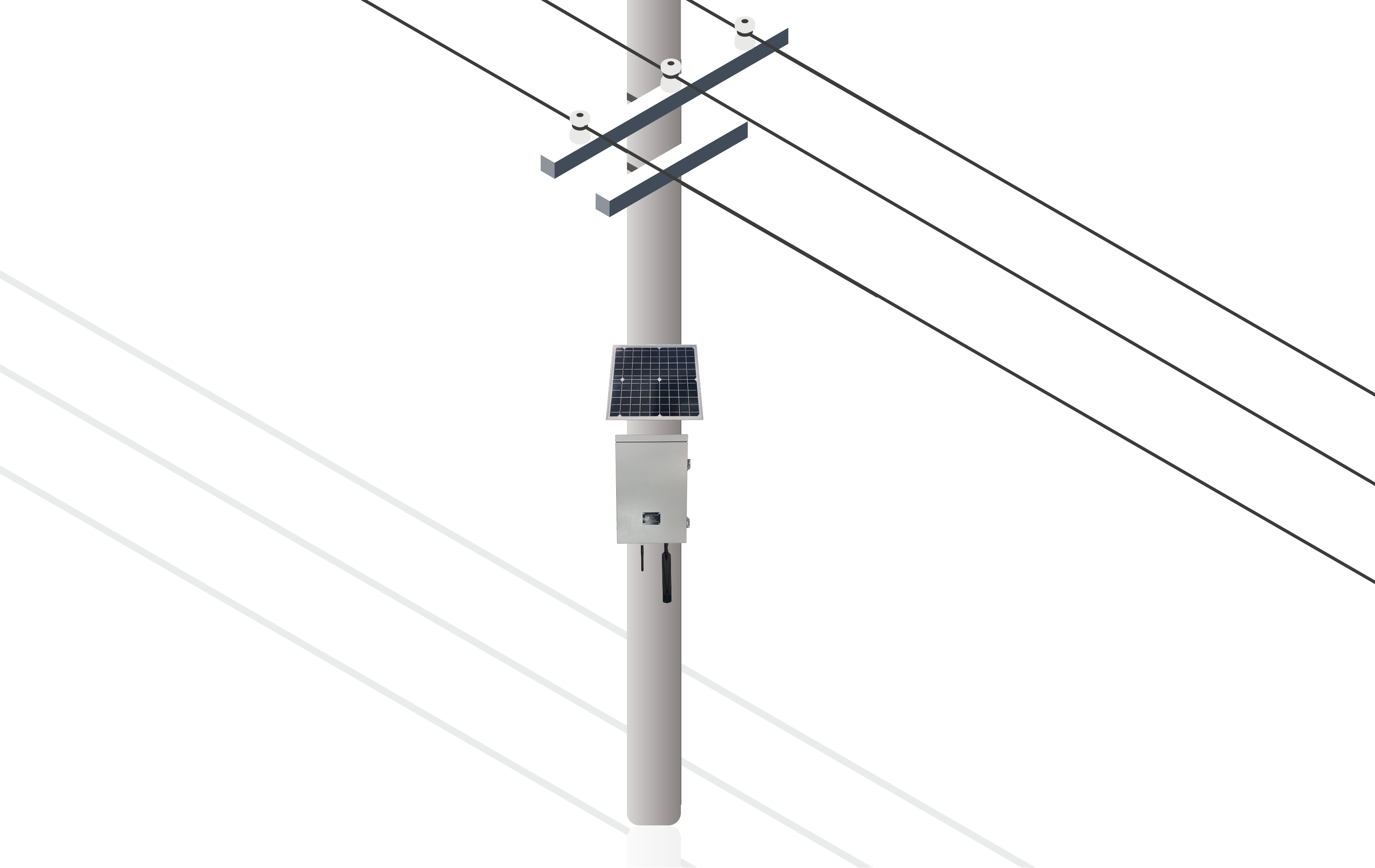

The indicator control communication unit is a data concentrator for collecting indicator load current and fault events. Communication unit supports IEC101/IEC104 protocol transmission and SCADA real-time communication. Communication unit is an effective remote monitoring solution. Communication unit is pole-mounted and powered by solar panels. The power supply has the advantages of maintenance-free and quick installation.

Communication unit features:

1. Industrial compact design, small size and light weight, outdoor pole mount
2. No need for additional power supply, self-contained solar panel power supply, backup lithium battery, to ensure that it is always online
3. Stronger scalability, with different interface versions of serial port and Ethernet
4. Two-way data transmission, suitable for Control Unit JYZ series overhead fault indicators to ensure data security

Feature and Benefit

Industrial design for outdoor use

IP54

Protection class

Special process baking paint, cold resistance, high temperature resistance and corrosion resistance
Compact design, easy installation

Pole mount
Equipped with hoop, the structure is more firm
Solar powered, independent power supply

Never disconnect
Equipped with backup battery, and solar clean energy, double guarantee
Modular design, free combination

Stronger scalability
Support Ethernet port and serial port communication, equipped with GPS module to achieve precise positioning

Product Structure

JYZ-FF-HD V2.0

1
JYZ-HW-HD V2.0，Collect fault, load, heartbeat information from indicators，Metal shell with 12VDC output interface

2
Communication unit of DCU, with RS232/RS485 interface, and Ethernet port, stronger expansibility

3
Spare lithium battery, compact design, larger capacity, super battery life, continuous power supply for equipment in power outages or rainy weather

4
Lock hidden hidden lock to ensure equipment safety

5
Insulated anti-rust paint, suitable for outdoor harsh environments, high temperature and corrosion resistance
DCU V2.0

1
DCU's solar charging interface supports DC 18V charging voltage

2
Backup lithium battery interface

3
Serial port 2 for remote communication

4
The power output interface of the communication module, wide voltage output (10V~21VDC)

5
Ethernet port of DCU, supports router and wired Ethernet communication

6
Serial port 1, used for log output and local upgrade, etc.

7
Reserved external LED light interface
Modem

1
Modem power connector

2
Communication RS232 interface

3
SIM card installation location
JYZ-FF-HD

1
Mainboard of the DCU, integrating remote communication functions and collecting indicator data

2
Backup lithium battery for power backup

3
Waterproof sealing rubber ring, suitable for outdoor harsh environment

4
Solar charge port and debug serial port

5
Cellular and RF Antennas

Technical Parameter

Parameter	Value
Power supply
Main power	Solar powered (solar panel rated output voltage DC18V，20W）
Backup power	Lithium battery: DC12V/10Ah
Communication
Remote	GPRS/3G/4G(HD)
Remote	Modem/Router(HD 2.0)
Local communication	433MHz
Local communication distance	Up to 70m
Communication protocol	IEC101/IEC104
Sim card	1 SIM card
Number of connected FPIs	Standard 3, up to 9 FCI
Physical characteristics
Dimensions	200X300X130mm
Weight	≤3.9Kg
Protection class	IP54
Operating temperature	-40℃～70℃
Configuration interface	RS232
Communication Interface	Ethernet port（HD2.0）
Visual fault indication	LED light
Install	Pole mount
Life time	>8 years
