What is a Load Break Switch?

A load break switch (LBS) is a vital device in medium-voltage distribution networks, specifically designed to safely interrupt or isolate electrical circuits under load conditions. Unlike standard isolators or switches, which require the circuit to be de-energized before operation, a load break switch can reliably open or close a circuit while it is carrying current, ensuring both operational safety and continuous power supply.

Role of LBS in Distribution Networks

In distribution networks, a Load Break Switch plays several critical roles:

Feeder Sectioning

• Enables specific sections of the network to be isolated without interrupting the entire system
• Reduces the impact of maintenance or faults on end users

Fault Isolation

• Works with fault indicators (FTUs) to quickly locate and disconnect faulty sections
• Minimizes outage duration and improves grid reliability

Safe Maintenance

• Provides a secure disconnection point for operators performing repairs or inspections

Support for Automation

• Integrates with ring main units (RMUs) and other smart grid devices for automated network control

Key Features of Distribution Network LBS

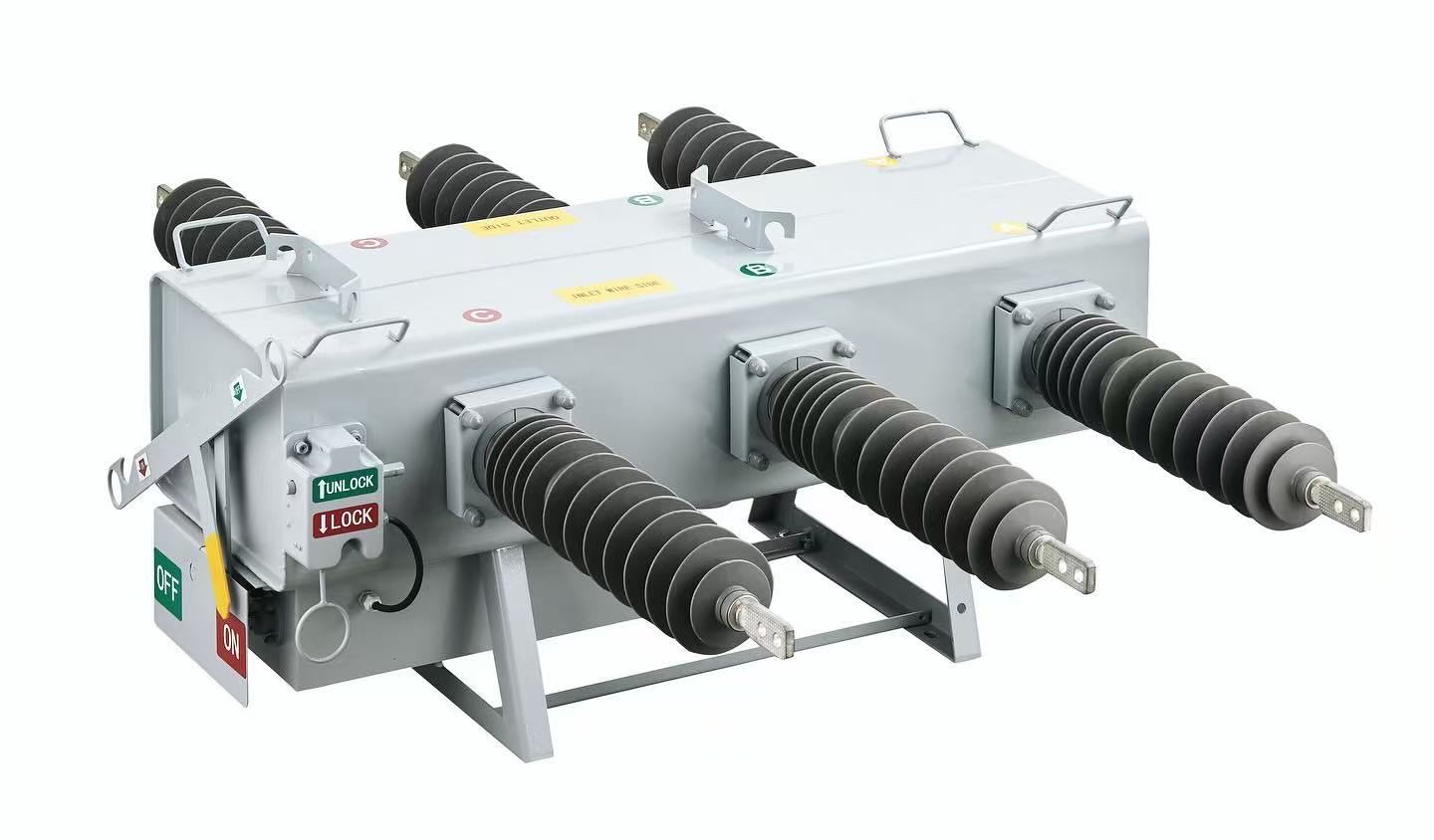

• The F-LBS36 series from Four-Faith Power offers features specifically tailored for medium-voltage distribution networks:
• Load-Breaking Capability: Safely interrupts current under load conditions
• Outdoor Installation: Weather-resistant design suitable for pole-mounted or RMU installation
• Easy Maintenance: Modular construction allows quick inspection and replacement
• Integration-Ready: Works seamlessly with FTUs and fault indicators for smart grid application
• Improve network reliability and reduce downtime
• Safely isolate faults without affecting the entire system
• Enhance operator safety during maintenance

Enable smart grid automation and remote monitoring

Conclusion

A Load Break Switch is a vital component in medium-voltage distribution networks, ensuring safety, reliability, and operational efficiency. At Four-Faith Power, our F-LBS36 series is designed to meet the rigorous demands of modern electrical distribution systems, offering robust performance, ease of maintenance, and seamless integration with smart grid solutions.

Learn more about our F-LBS36 Load Break Switch here and discover how it can enhance the safety and reliability of your distribution network.
