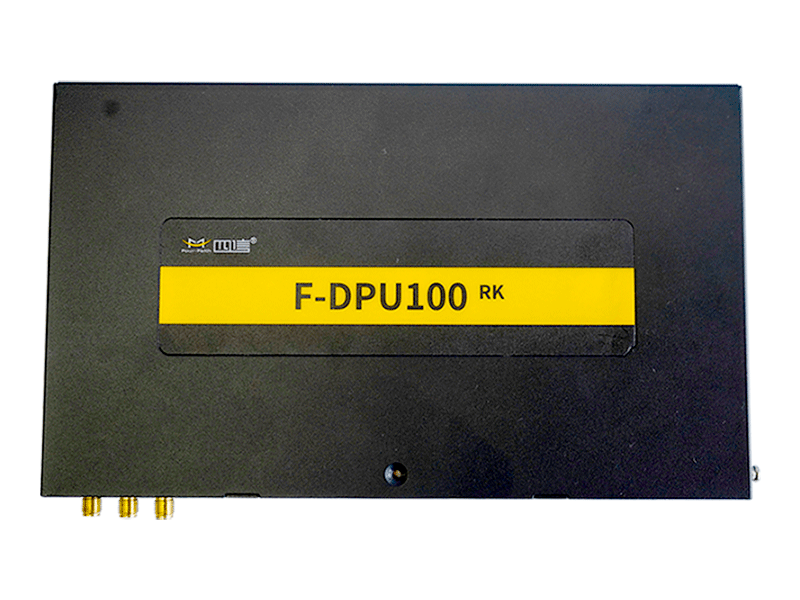

Protocol Converter Gateway F-DPU100-RK

Overview

Protocol Converter Gateway F-DPU100-RK can provide comprehensive data communication processing functions including Ethernet, standard RS232, standard RS485, and other communication interfaces for different background SCADA systems, power protection devices, various intelligent devices, and different management systems. Protocol converter gateways main functions are Process uplink and downlink information, complete the forwarding of different protocols, and realize the transmission of application software communication of different systems and different protocols.

Feature and Benefit

Reliable connection

Multiple means of Internet access are offered, including 2G/3G/4G/5G, and Ethernet. Dual SIM failover enables the device to automatically switch between carrier networks. Auto link detection and embedded watchdog keep you always online.
Extensive Interfaces for different device

Support 1*WAN, 4*LAN port，RS232/RS485, and IO ports. Meet the connection requirements of different devices. It provides rich interface types for multi-function application scenarios such as smart power and smart distribution network.

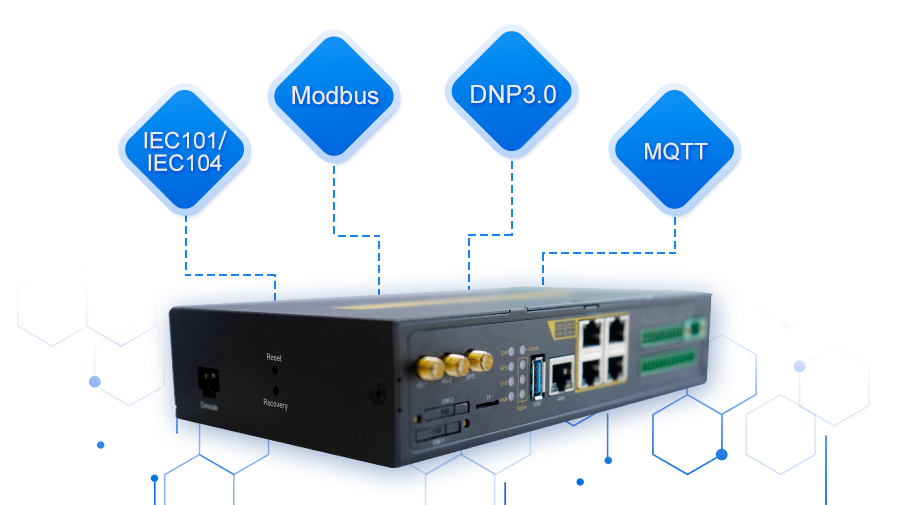

Rich protocol types

Support standard Modbus RTU, Modbus TCP, IEC101, IEC104, DNP3.0, MQTT, and other protocols to meet the transmission needs of different smart projects; and provide protocol conversion functions for different background SCADA systems, power protection devices, various smart devices, Different management systems, etc. provide reliable protocol transmission requirements.

Technical Parameter

Communication Specification
Items	Contents
Module	Industrial grade wireless module(Optional single module, no module)
Frequency	5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79 LTE:B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/B12(17)/B13/B14/B20/B25/B26/B28/B29/B30/B38/B39/B40/B41/B42/B43/ B46/ B48/B71
Bandwidth	5G NR(Downlink 3.4Gbps，Uplink 350Mbps) FDD LTE(Downlink100Mbps，Uplink50Mbps) TDD LTE(Downlink68Mbps，Uplink17Mbps) CDMA2000 1X EVDO Rev A (Downlink3.1Mbps，Uplink1.8Mbps) WCDMA(Downlink42Mbps，Uplink5.76Mbps) TD-SCDMA(Downlink4.2Mbps，Uplink2.2Mbps)
Power	< 24dBm
Sensitivity	<-109dBm

Interfaces
Items	Contents
WAN	1 x 10/100/1000M ETH port, auto adapt MDI/MDIX, built in 1.5KV ESD
LAN	4 x 10/100/1000M ETH port, auto adapt MDI/MDIX, built in 1.5KV ESD
Serial	2RS485, 2RS232/RS485 mutiplex interface, Built-in 1.5KV electromagnetic isolation protection Data bit：5, 6, 7, 8 Stop bit：1, 1.5(Optional), 2 Parity: none, even, odd, SPACE(Optional) and MARK (Optional) Baud rate：2400~115200bits/s
IO port	4DI, 2DO, 1*RELAY
Indicators	“Signal Strength”“Power”“System”“Online”“SIM”“GPS”“WAN”“LAN”
Antenna	Cellular：4 standard SMA female antenna interfaces, characteristic impedance 50 ohms
SIM/UIM	Standard drawer type user card interface, Support 1.8V/3V SIM/UIM card, built-in 15KV ESD protection
Power	5.08mm distance 2PIN terminal, 12V DC power supply
USB	Standard USB3.0 interface, support a variety of USB storage, Choose one of two with TF card
TF card	Standard elastic TF card interface, support various TF cards, Choose one of two with USB
Reset Button	Through this button, the parameter configuration can be restored to the factory

Physical Properties		Hardware System
Items	Contents	Items	Contents
Shell	Metal shell, protection grade IP30	CPU	Quad core 64 bit Cortex-A55@2.0GHz
Size	20812444mm	FLASH	4GB LPDDR4 32GB FLASH
Weight	0.94kg	DDR3	debian10

Power Supply		Others
Items	Contents	Items	Contents
Standard	DC 12V	Operating Temperature	-35~+75ºC
Range	DC 9~24V	Storage Temperature	-10~+80ºC
Rated Power	36W	Relative Humidity	40%~90% (No condensation)
