Local Fault Indicator JJZ-HW

Overview

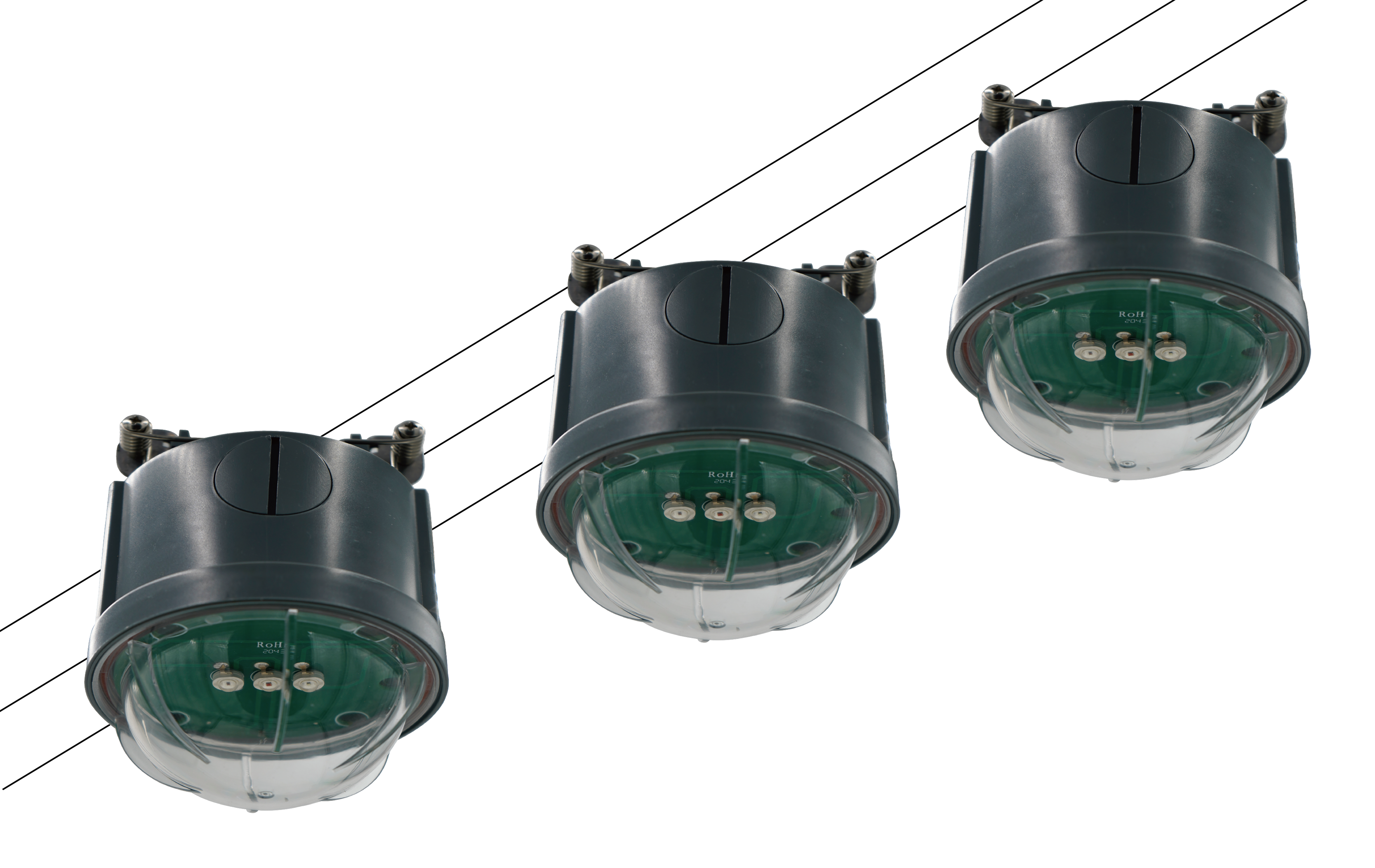

The JJZ-HW overhead line local fault indicator is an intelligent monitoring device installed on distribution overhead lines to indicate the location of faults such as short circuits and ground faults. It detects changes in line current and voltage to automatically determine the fault type and provides on-site indication through LED lights or mechanical flag when a fault occurs. As the device does not have a communication function, maintenance personnel obtain fault information through field inspection. Featuring a compact design, easy installation, and reliable operation, it helps reduce fault location time and improves the reliability and maintenance efficiency of the power distribution network.

Feature and Benefit

Self-Contained, flexible deployment.

Typically powered by lithium batteries, it is self-sufficient and requires no additional wiring.
It does not rely on public or private wireless networks and is completely unaffected by signal coverage, making it particularly suitable for remote mountainous areas and communication dead zones.
Local fault indication for easy identification.

When a short circuit or ground fault occurs in the line, the indicator can quickly detect abnormal current.
Its core function is to emit a flashing (or color-changing) signal through a high-brightness LED, facilitating quick diagnosis by on-site personnel.
High Reliability and Environmental Adaptability

Due to its simple structure and lack of complex communication modules, it boasts extremely low power consumption and superior stability and anti-interference capabilities.

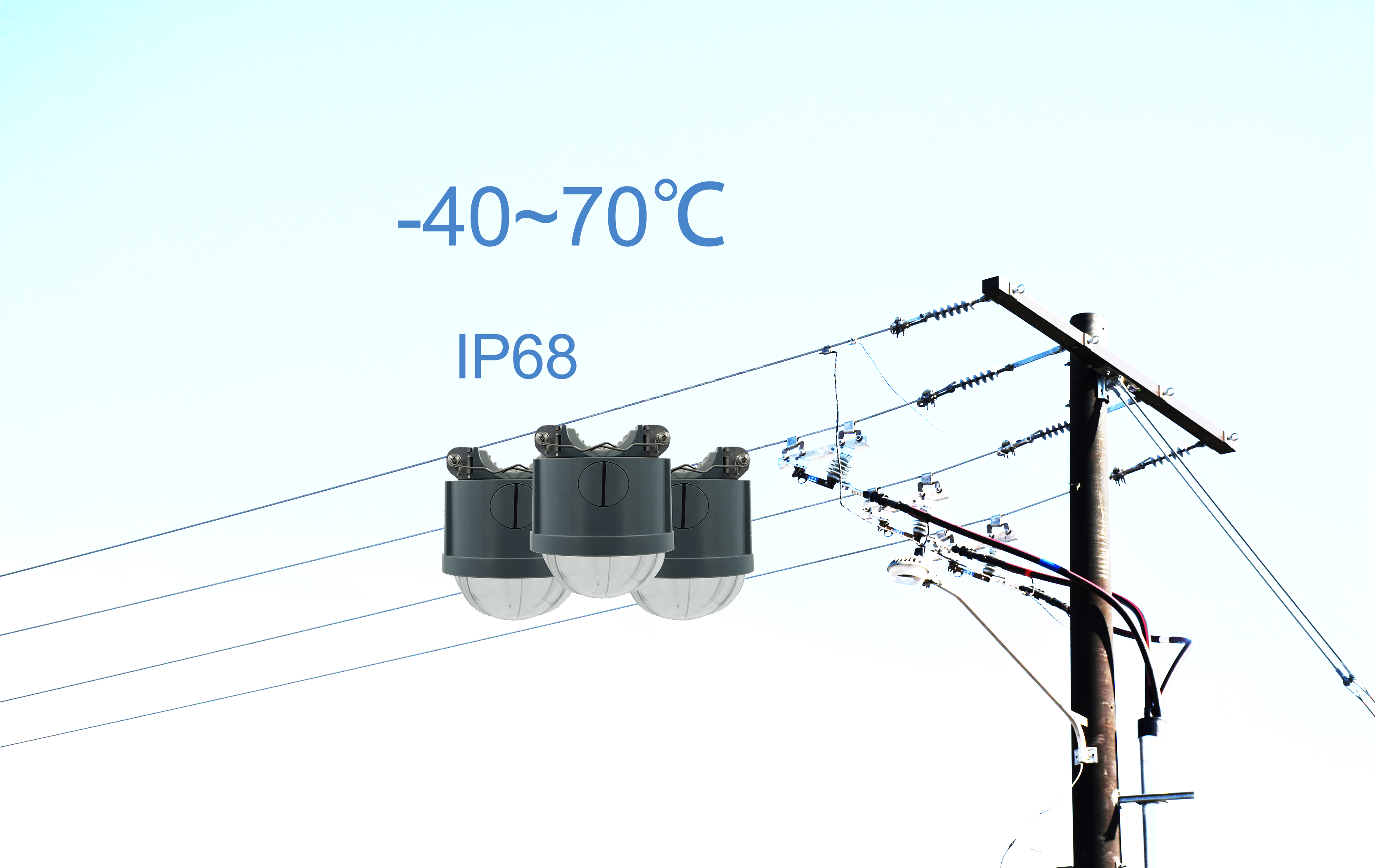

Specifically designed for harsh outdoor environments, it features lightning protection, rainproofing, dustproofing, and resistance to high and low temperatures, ensuring long-term stable operation.
Mass Deployment. Minimal Cost

This solution offers the best cost-performance ratio for resolving widely distributed overhead line faults, thanks to its low cost and simple operation and maintenance. It is particularly suitable for large-scale deployment.

Technical Parameter

Technical Description:

Parameter/Type	JJZ-HW
Voltage level	5-38KV
Short-circuit Trip Current	40,80,120,200 milliseconds
Trip current delay	Up to 30mm
Auto-reset Time	2 minutes , 8h,24h,48h
Indication Unit Reset	1.Manual by magnet. 2.Time reset: adjustable, 8h default 3.Auto reset after repower,30s delays
Protection Class	IP68
Internal Type Test	According to IEEE495-2007
Operation Temperature Range	-40~+70℃
Power Supply	Lithium battery , replaceable
Battery Life	Approx. 10 years
Weight	Approx. 600g
Dimensions	Diameter: 93mm Height: 128mm
